Customization:	Available
Application:	Electronic Products, Speaker Magnet, Industrial Magnet, Motor Magnet
Shape:	Customized

Overview
Detailed Photos
Product Parameters
Certifications
Our Advantages

Basic Info.

Model NO.

Customized

Coating

Customized

Grade

N35

Transport Package

Carton, Pallet

Specification

Customized

Trademark

Mashi Industries

Origin

Ningbo

HS Code

850511100

Production Capacity

100000000

Packaging & Delivery

Package Size

11.50cm * 8.50cm * 5.50cm

Package Gross Weight

1.000kg

Product Description

Neodymium NdFeB Ferrite AlNiCo SmCo Pernament Magnet

Grade	Br		Hcb		Hcj		(BH)max		Equivalent grade with other domestic and foreign standards
SJ/T104 10-2016	mT	Gs	kA/m	Oe	kA/m	Oe	kJ/m3	MGOe	Japan TDK	USA MMPA	Germany HF	China old standard
Y8T	200-235	2000-2350	125-160	1570-2010	210-280	2640-3520	6.5-9.5	0.82-1.19	FB1A	C1	HF8/22
Y25	360-400	3600-4000	135-170	1700-2140	140-200	1760-2520	22.5-28.0	2.83-3.52			HF24/16
Y26H-1	360-390	3600-3900	200-250	2520-3140	225-255	2830-3200	23.0-28.0	2.89-3.52	FB3X		HF24/23
Y28	370-400	3700-4000	175-210	2200-2640	180-220	2260-2760	26.0-30.0	3.27-3.77		C5	HF26/18	Y30
Y28H-1	380-400	3800-4000	240-260	3015-3270	250-280	3140-3520	27.0-30.0	3.39-3.77	FB3G	C8	HF28/26
Y28H-2	360-380	3600-3800	271-295	3405-3705	382-405	4800-5090	26.0-28.5	3.27-3.58	FB6E	C9	HF24/35
Y30H-1	380-400	3800-4000	230-275	2890-3450	235-290	2950-3650	27.0-31.5	3.39-3.96	FB3N		HF28/24	Y30BH
Y30H-2	395-415	3950-4150	275-300	3450-3770	310-335	3900-4210	27.0-32.0	3.39-4.02	(FB5DH)	C10(C8A)	HF28/30
Y32	400-420	4000-4200	160-190	2010-2400	165-195	2080-2450	30.0-33.5	3.77-4.21	FB4A		HF30/16
Y32H-1	400-420	4000-4200	190-230	2400-2900	230-250	2900-3140	31.5-35.0	3.96-4.40			HF32/17	Y35
Y32H-2	400-440	4000-4400	224-240	2800-3020	230-250	2900-3140	31.0-34.0	3.89-4.27	FB4D		HF30/26	Y35BH
Y33	410-430	4100-4300	220-250	2760-3140	225-255	2830-3200	31.5-35.0	3.96-4.40			HF32/22
Y33H	410-430	4100-4300	250-270	3140-3400	250-275	3140-3450	31.5-35.0	3.96-4.40	(FB5D)		HF32/25
Y33H-2	410-430	4100-4300	285-315	3580-3960	305-335	3830-4210	31.8-35.0	4.0-4.40	FB6B	C12	HF30/32
Y34	420-440	4200-4400	250-280	3140-3520	260-290	3270-3650	32.5-36.0	4.08-4.52		C8B	HF32/26
Y35	430-450	4300-4500	230-260	2900-3270	240-270	3015-3400	33.1-38.2	4.16-4.80	FB5N	C11(C8C)
Y36	430-450	4300-4500	260-290	3270-3650	265-295	3330-3705	35.1-38.3	4.41-4.81	FB6N		HF34/30
Y38	440-460	4400-4600	285-315	3580-3960	295-325	3705-4090	36.6-40.6	4.60-5.10
Y40	440-460	4400-4600	315-345	3960-4340	320-350	4020-4400	37.6-41.6	4.72-5.23	FB9B		HF35/34
Y41	450-470	4500-4700	245-275	3080-3460	255-285	3200-3580	38.0-42.0	4.77-5.28	FB9N
Y41H	450-470	4500-4700	315-345	3960-4340	385-415	4850-5220	38.5-42.5	4.84-5.34	FB12H
Y42	460-480	4600-4800	315-335	3960-4210	355-385	4460-4850	40.0-44.0	5.03-5.53	FB12B
Y42H	460-480	4600-4800	325-345	4080-4340	400-440	5020-5530	40.0-44.0	5.03-5.53	FB14H
Y43	465-485	4650-4850	330-350	4150-4400	350-390	4400-4900	40.5-45.5	5.09-5.72	FB13B

GRADE	Remanence(Br)		Magnetic Coercivity(Hcb)		IntrinsicCoercivity(Hcj)		Maximum Magnetic Energy Product(BH) max		Operating Temperature (Tw)ºC
GRADE	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MG Oe	Operating Temperature (Tw)ºC
N35	1.18-1.23	11.8-12.3	≥868	≥10.9	≥955	≥12	263-287	33-36	≤80
N38	1.22-1.28	12.2-12.8	≥899	≥11.3	≥955	≥12	287-310	36-39	≤80
N40	1.26-1.31	12.6-13.1	≥923	≥11.6	≥955	≥12	302-326	38-41	≤80
N42	1.28-1.34	12.8-13.8	≥923	≥11.6	≥955	≥12	318-342	40-43	≤80
N45	1.32-1.37	13.2-13.7	≥876	≥11.0	≥955	≥12	342-366	43-46	≤80
N48	1.36-1.42	13.6-14.2	≥836	≥10.6	≥876	≥11	358-390	45-48	≤80
N50	1.39-1.45	13.9-14.5	≥836	≥10.5	≥876	≥11	374-406	47-51	≤80
N52	1.42-1.48	14.2-14.8	≥796	≥10.6	≥876	≥11	390-422	49-53	≤80
N35M	1.18-1.23	11.8-12.3	≥868	≥10.9	≥1114	≥14	263-287	33-36	≤100
N38M	1.22-1.28	12.2-12.8	≥899	≥11.3	≥1114	≥14	287-310	36-39	≤100
N40M	1.26-1.31	12.6-13.1	≥923	≥11.6	≥1114	≥14	302-326	38-41	≤100
N42M	1.28-1.34	12.8-13.4	≥924	≥11.6	≥1114	≥14	318-342	40-43	≤100
N45M	1.34-1.39	13.4-13.9	≥876	≥11.0	≥1114	≥14	342-366	43-36	≤100
N48M	1.36-1.42	13.6-14.2	≥876	≥11.0	≥1114	≥14	366-390	46-49	≤100
N35H	1.18-1.23	11.8-12.3	≥868	≥10.9	≥1353	≥17	263-287	33-36	≤120
N38H	1.22-1.28	12.2-12.8	≥899	≥11.3	≥1353	≥17	287-310	36-39	≤120
N40H	1.26-1.31	12.6-13.1	≥923	≥11.6	≥1353	≥17	302-326	38-41	≤120
N42H	1.28-1.34	12.8-13.4	≥924	≥11.6	≥1353	≥17	318-342	40-43	≤120
N45H	1.33-1.39	13.3-13.9	≥923	≥11.6	≥1353	≥17	342-366	43-46	≤120
N48H	1.36-1.42	13.6-14.2	≥923	≥11.6	≥1274	≥16	≥366-390	46-49	≤120
N33SH	1.41-1.19	11.4-11.9	≥836	≥10.5	≥1592	≥20	247-270	31-34	≤150
N35SH	1.18-1.23	11.8-12.3	≥868	≥10.9	≥1592	≥20	263-287	33-36	≤150
N38SH	1.22-1.28	12.2-12.8	≥899	≥11.3	≥1592	≥20	287-310	36-39	≤150
N40SH	1.26-1.31	12.6-13.1	≥923	≥11.6	≥1592	≥20	303-326	38-41	≤150
N42SH	1.28-1.34	12.8-13.4	≥923	≥11.6	≥1592	≥20	318-342	40-43	≤150
N45SH	1.33-1.39	13.3-13.9	≥923	≥11.6	≥1592	≥20	342-366	43-46	≤150
N28UH	1.03-1.09	10.3-10.9	≥780	≥9.80	≥1990	≥25	207-231	26-29	≤180
N30UH	1.09-1.14	10.9-11.4	≥812	≥10.2	≥1990	≥25	223-247	28-31	≤180
N33UH	1.13-1.17	11.3-11.7	≥852	≥10.7	≥1990	≥25	247-263	31-33	≤180
N35UH	1.18-1.22	11.8-12.2	≥868	≥10.9	≥1990	≥25	263-287	33-36	≤180
N38UH	1.22-1.27	12.2-12.7	≥899	≥11.3	≥1990	≥25	≥287-310	36-39	≤180
N28EU	1.03-1.09	10.3-10.9	≥780	≥9.80	≥2388	≥30	≥207-231	26-29	≤200
N30EH	1.08-1.13	10.8-11.3	≥812	≥10.2	≥2388	≥30	223-247	28-31	≤200
N33EH	1.13-1.17	11.3-11.7	≥852	≥10.7	≥2388	≥30	247-263	31-33	≤200

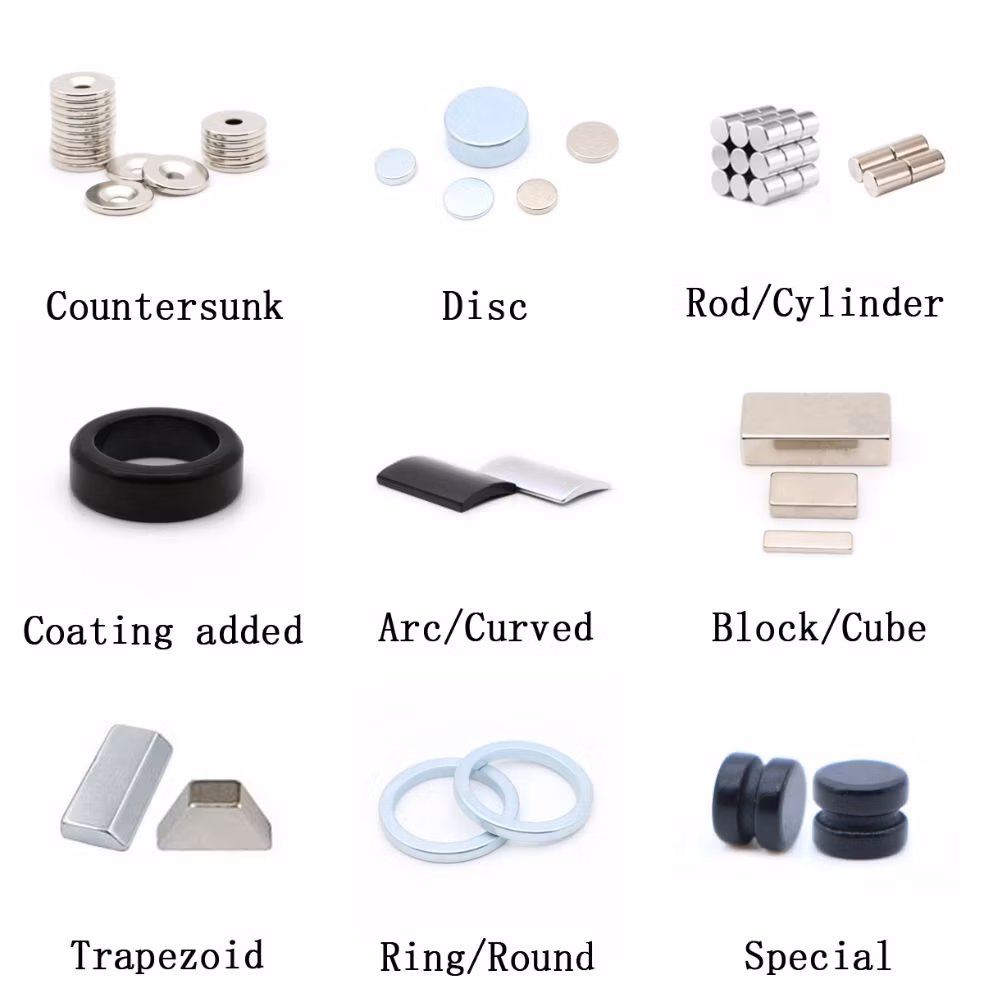

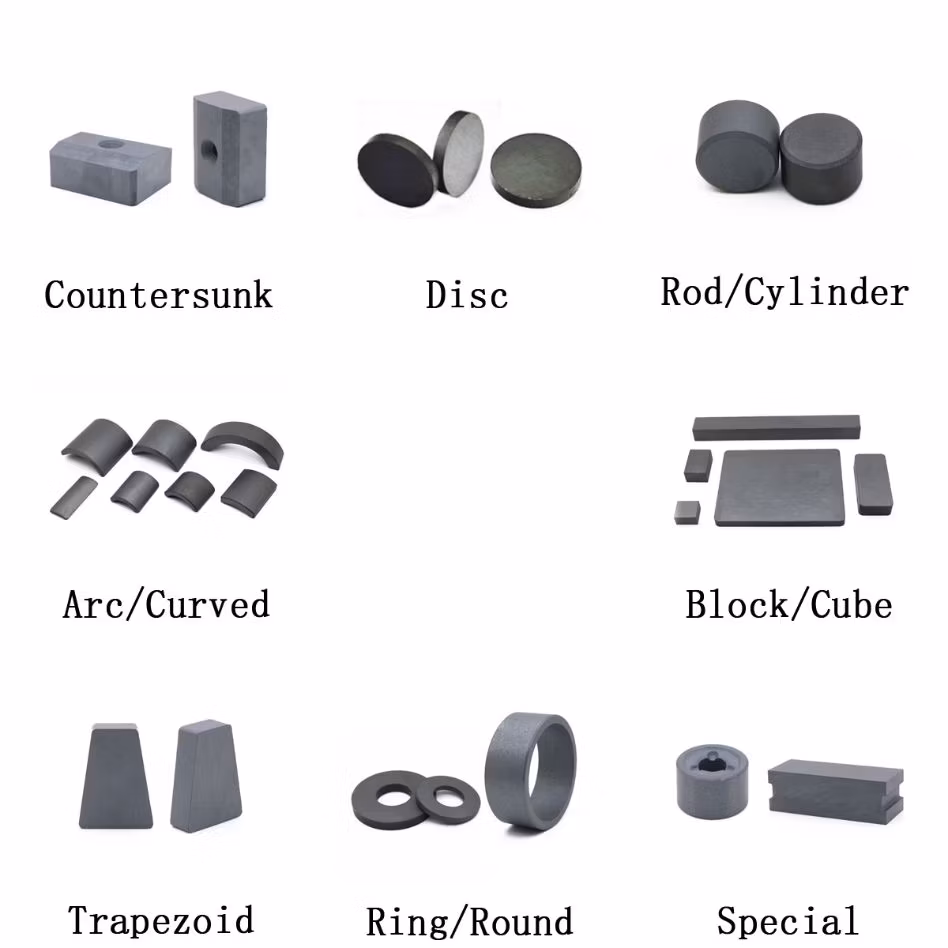

Ningbo Mashi Magnet Technology Co., Ltd. is a professional magnet & assemblies manufacturing company in China. We can manufacturing various shapes and sizes according to customer requirements, such as Round, Ring, Cylinder, Ball, Block, special-shaped, etc.and manufacturing various of Magnetic Assemblies like: Pot, Hook, Bar, Grate, etc.

Our Products are widely used in Automobiles, electric vehicle, Speaker, Servo Motor, magnetic separator, Wind Turbine Generator, Medical Equipment, Elevators, Electronic Products, Packaging, and other industrial fields. Our products sell well in many countries and regions such as China, Europe, America, Southeast Asia and so on.

You can customize any magnet here, please contact us now.

Neodymium NdFeB Ferrite AlNiCo SmCo Pernament Magnet
